Description

Features of the glue spraying machine:

1. Easy to operate. Programming can be done on-site using a touchscreen computer or on a computer using applications like CAD/CORELDRAW. Programs can then be converted to PLT format and downloaded to the machine, making it easy to learn and understand.

2. High speed. The bridge-type platform structure allows for simultaneous operation and material unloading, resulting in glue spraying speeds 5-6 times faster than manual operation.

3. Up to four axes can be operated simultaneously, allowing for forward and backward, left and right movement, as well as three-dimensional, inclined, and single-sided glue application.

4. High precision and uniform glue application, eliminating glue push and glue dead spots.

5. The glue barrel is completely sealed, preventing glue from drying out. This reduces waste and prevents the release of toxic gases that could pollute the work environment.

6. Suitable for a wide range of glues, including white glue, all-purpose glue, PU glue, and hot melt glue.

7. Large working range, capable of spraying up to 1000mm x 600mm.

8. Environmentally friendly and energy-saving, the exhaust system can filter out the odor and mist from the glue during spraying.

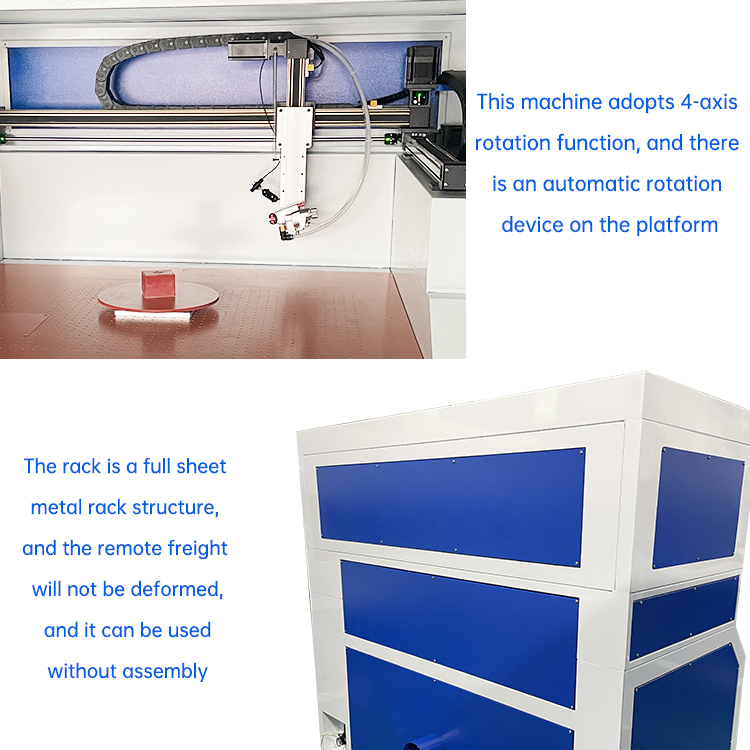

9. All-Sheet Metal Frame: The frame is a welded sheet metal structure, ensuring it remains stable even during long-distance shipping. No assembly is required; simply plug in and run.

10. Large Range: The spraying range is 1 meter long and 60 cm wide. Customized models are available for larger or smaller sizes.

11. Fast Speed: This machine utilizes a high-power closed-loop motor, achieving a maximum spray speed of 800 mm/s per distance.

12. Module: A 5.0mm wide, high-speed, silent module is used, ensuring smoother operation and higher efficiency.

13. Material Fixing: This machine features downward suction, which absorbs the material and prevents it from moving during operation.

14. Acceptable Glues: Yellow glue, white glue, hot melt glue, spray glue, and other liquid glues and solvents.

15. Features: This machine features a four-axis rotation function and an automatic rotation mechanism on the platform, allowing three-dimensional products to be rotated for spraying.

16. Environmentally Friendly: The addition of an overhead suction system further enhances environmental friendliness and prevents odor leakage.

Product Parameters:

Spray Width: 1000*600mm
Voltage: 220V
Power: 800W
Pressure: 0.5MPa
Machine Dimensions: 1700*1250*1400mm
Net Weight: 200kg

Applications:

Suitable for: Luggage and bag factories, leather bag factories, gift and jewelry box factories, leather goods factories, electronic product leather case factories, jewelry factories, furniture factories, eyeglass case factories, automotive interior factories, and shoe factories.
