Description

Product Features:
1. Fast Speed: This machine utilizes a high-power closed-loop motor, achieving a maximum glue spraying speed of 800 mm/s per distance.

2. Module: Utilizing a 5.0mm wide, high-speed, and silent module, this machine operates more smoothly and efficiently, achieving high efficiency.

3. All-sheet metal frame: It remains stable during long-distance shipping and requires no assembly; simply plug in and use.

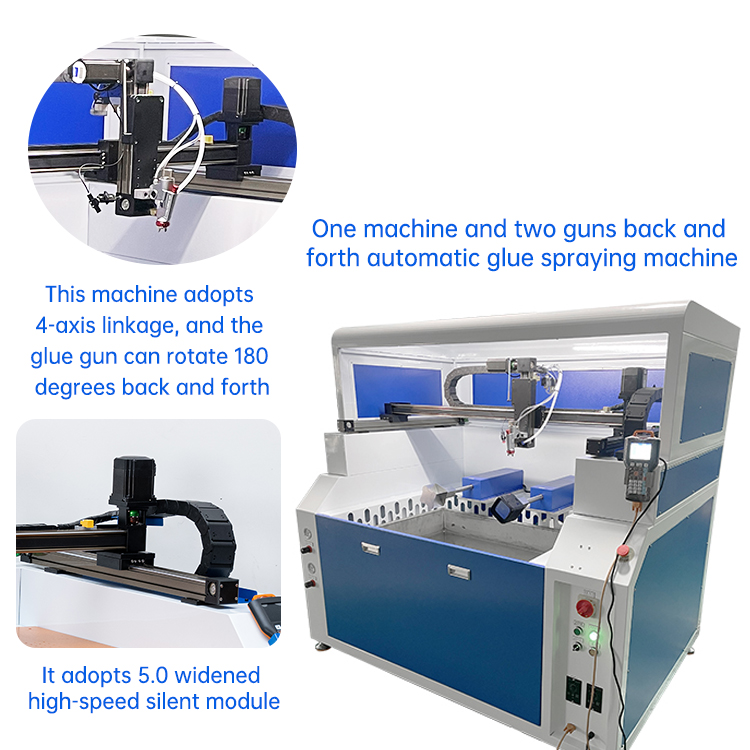

4. Utilizing a four-axis linkage, the rotating platform can hold two products for simultaneous glue spraying, and the glue gun can rotate 180 degrees forward and backward. The frame is raised to 40 cm on both sides, compared to 15 cm for conventional machines, enabling the spraying of three-dimensional products.

5. Large spray range: The spray range is 1 meter long and 60 cm wide. Customized models are available for larger or smaller sizes.

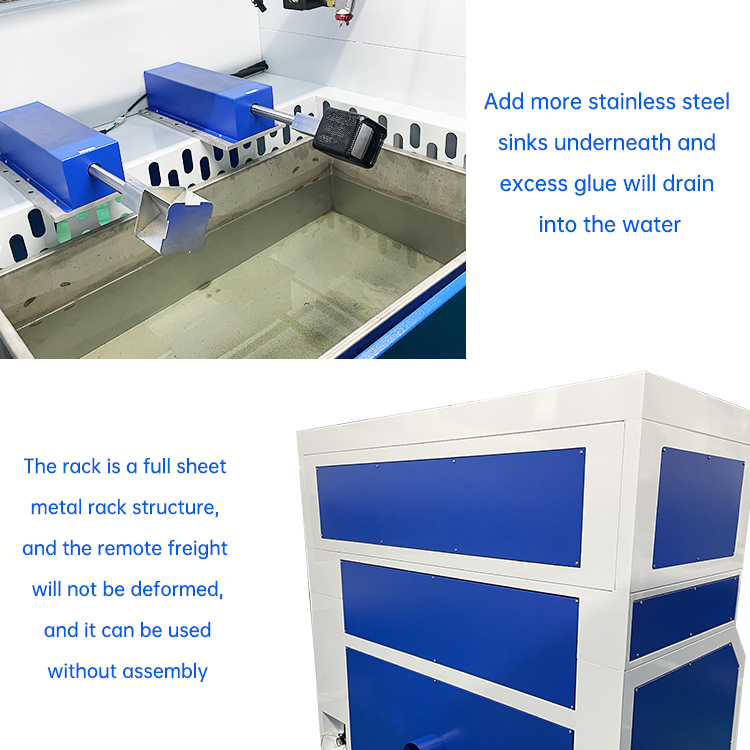

6. Environmentally friendly: A stainless steel sink is installed underneath to drain excess glue, preventing any residual glue from bouncing back up.

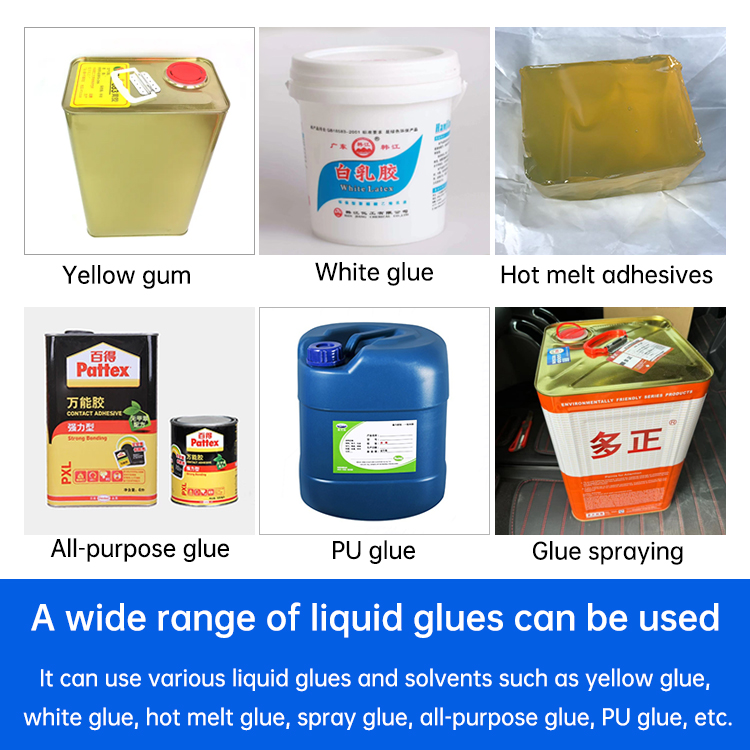

7. Accepts various types of liquid glues and solvents, including yellow glue, white glue, hot melt glue, and spray glue.

8. Easy to operate: Program on-site using a touchscreen computer or on a computer using applications like CAD/CoreLDRAW, convert the program to PLT format, and then download it to the machine. It’s easy to learn and understand.

9. High speed: The bridge-type platform structure allows for simultaneous operation and material unloading, achieving a spray speed 5-6 times faster than manual operation.

10. Up to four axes can be linked, enabling not only forward and backward, left and right movement, but also three-dimensional, inclined, and single-sided gluing.

11. High precision and uniform glue application, eliminating glue push and glue dead spots.

12. The glue barrel is completely sealed to prevent glue from drying out. This reduces waste and prevents the release of toxic gases during drying, which can pollute the work environment.

12. Large working range, capable of spraying up to 1000mm x 600mm.

13. Environmentally friendly and energy-saving, the exhaust system filters out odors and mist from the glue during spraying.

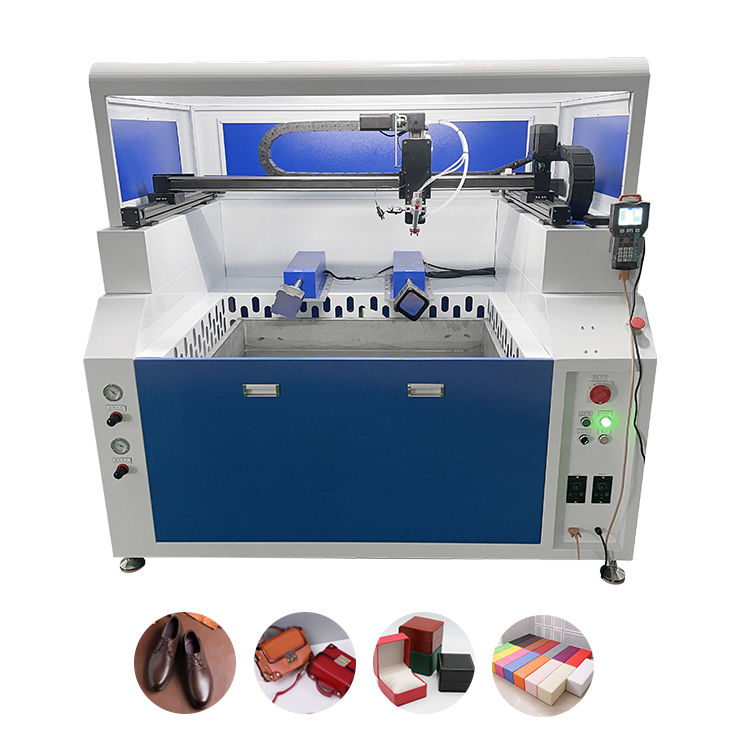

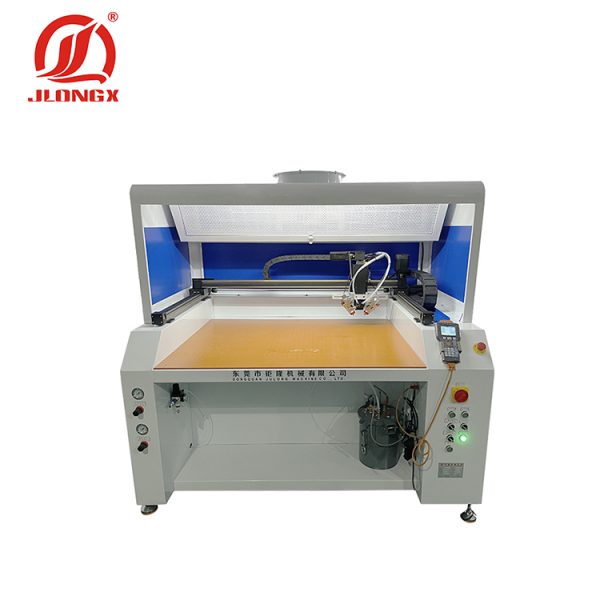

This fully automatic dual-gun glue sprayer is suitable for luggage and bag factories, gift and jewelry packaging factories, leather goods factories, electronic product leather case factories, jewelry factories, furniture factories, eyeglass case factories, automotive interior factories, shoe factories, and other industries.

Product Parameters:
Spray Width: 1000 x 600mm
Voltage: 220V
Power: 800W
Pressure: 0.5MPa
Machine Dimensions: 1700 x 1250 x 1400mm
Net Weight: 200KG
