Description

Product Features:
1. Large Range: The spraying range is 1 meter long and 60 cm wide.
2. Conveyor: Automated conveying system with four sections, including an oven, dries out the glue during spraying, allowing immediate operation.
3. All-Sheet Metal Frame: The frame is a welded sheet metal structure, ensuring it remains stable during long-distance transport. No assembly is required; simply plug in and use.

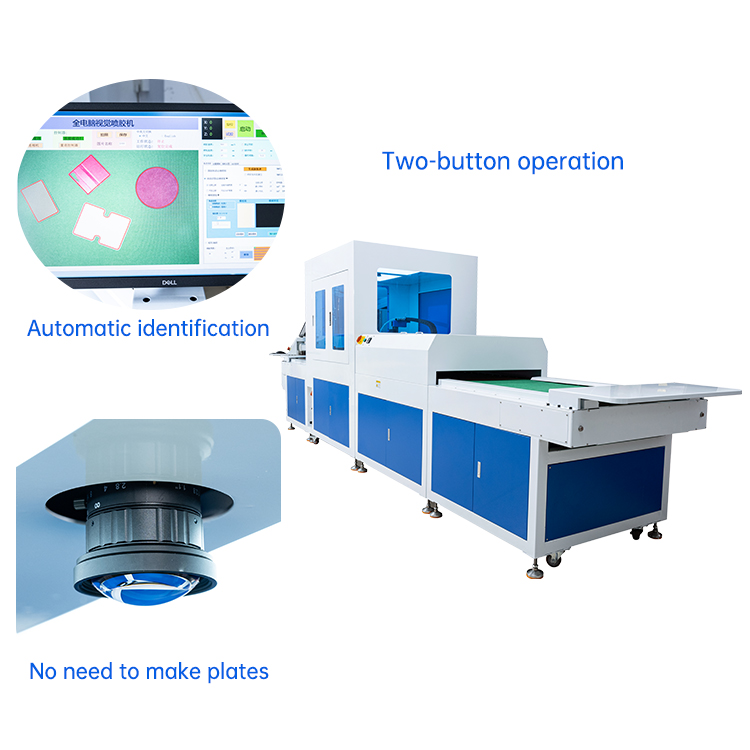

4. Automatic Identification: This machine uses a 30-megapixel camera that can capture and identify the material’s outline within 1 second and generate a spray path.
5. No Pattern Required: No pattern editing is required; any shape or color can be placed in the machine. The platform can identify the product’s trajectory without saving or importing drawings.
6. Free Dropping: Materials can be dropped into the machine at will, without requiring a fixed location; the machine will automatically find them.

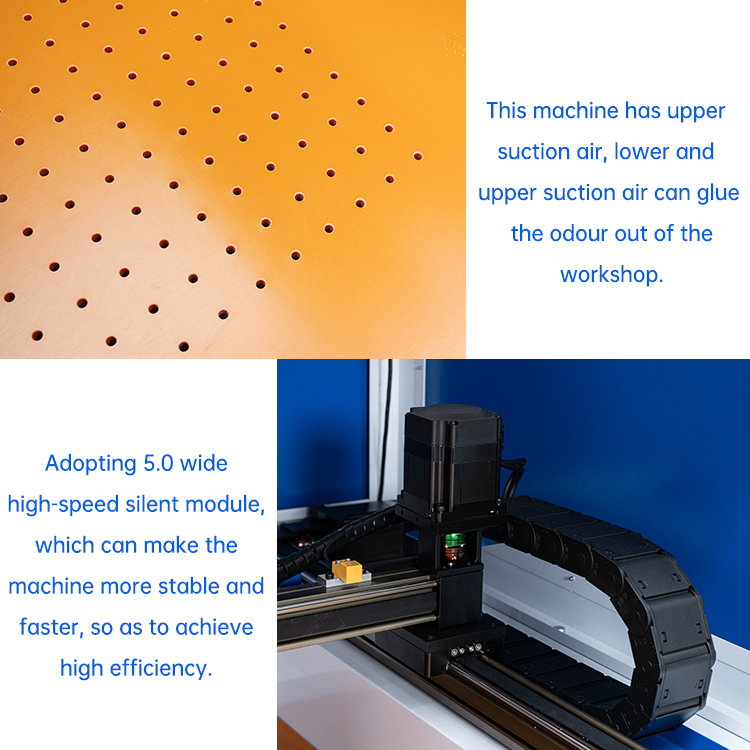

7. Automatic Suction: The machine is equipped with four fans for suction, which absorb the material and prevent it from moving during operation.
8. Module: A 5.0mm wide, high-speed, silent module is used, ensuring smoother, faster operation and higher efficiency.
9. High Speed: The machine utilizes a 750W high-power full-servo motor, achieving a maximum spray speed of 1200 mm/s per distance.

Applicable to: luggage factory, leather bag factory, gift jewelry box factory, leather goods factory, electronic product leather case factory, jewelry factory, furniture factory, glasses case factory, automobile interior decoration factory, shoe factory and other industries.

Product Specifications:
Spray Width: 1000 x 600mm
Voltage: 220V
Motor Power: 7kW
Dimensions: 6500 x 1400 x 1900mm
Net Weight: 1200kg
