Description

Product Features:
1. All-Sheet Metal Frame: The frame is a welded sheet metal structure that will not deform during long-distance shipping. No assembly is required; just plug in and run.
2. Large Range: The spray range is 1 meter long and 60 cm wide. Custom sizes are available for larger or smaller sizes.

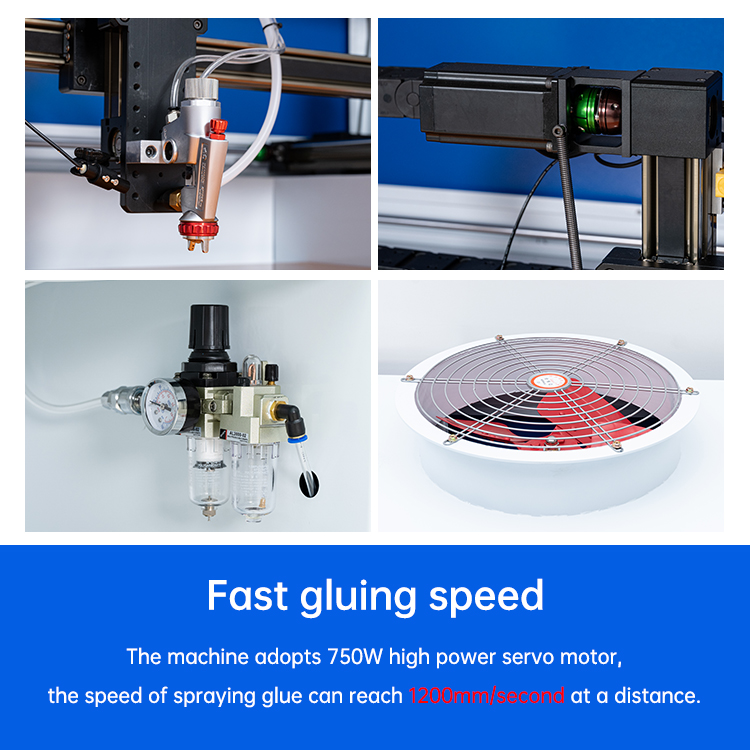

3. Fast Speed: This machine utilizes a high-power closed-loop motor, achieving a spray speed of up to 800 mm/s per distance.

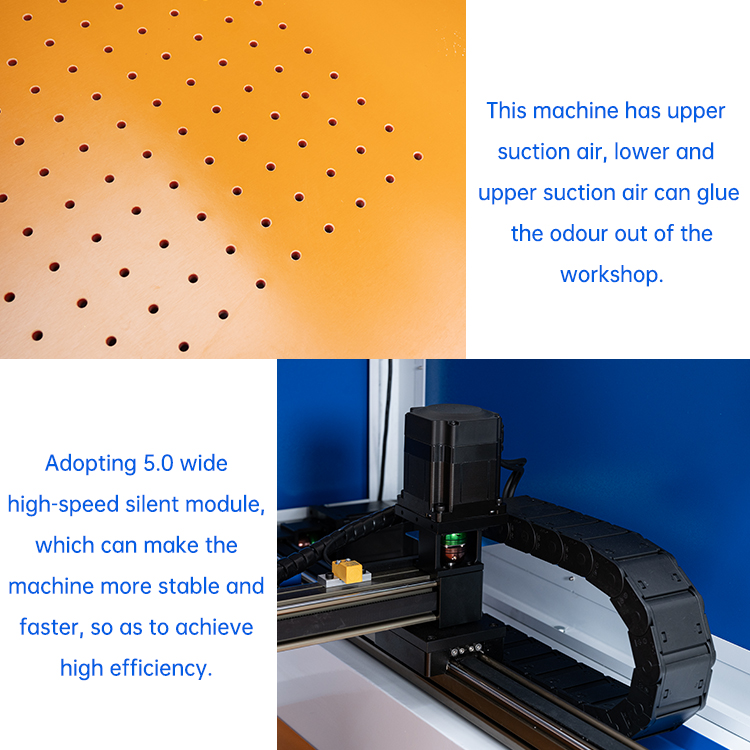

4. Module: A 5.0-inch wide, high-speed, silent module ensures smoother, faster operation, and higher efficiency.
5. Material Fixation: This machine features downward suction, which helps hold the material in place during operation.
6. Easy to operate: Programming can be done on-site using a touchscreen computer or by using a computer program such as CAD/CORELDRAW. Programs can then be converted to PLT format and downloaded to the machine, making it easy to learn and understand.

7. High speed. The bridge-type platform structure allows for simultaneous operation and material unloading, achieving glue spraying speeds 5-6 times faster than manual operation.
8. Up to four axes can be linked, enabling not only forward and backward, left and right movement, but also three-dimensional, inclined, and isolated surface gluing.
9. High precision and uniform glue application, eliminating glue push and glue dead spots.
10. The glue barrel is completely sealed to prevent glue from drying out. This reduces waste and prevents the release of toxic gases that could pollute the work environment.
11. Compatible with a wide range of glues, including white glue, all-purpose glue, PU glue, and hot melt glue.
12. Large working range, capable of spraying up to 1000mm x 600mm.
13. Environmentally friendly and energy-saving, the exhaust system filters out odors and mist from the glue during spraying.

Product application scope:

luggage factory, leather bag factory, gift jewelry box factory, leather goods factory, electronic product leather case factory, jewelry factory, furniture factory, glasses case factory, automobile interior decoration factory, shoe factory.

Product Specifications:
Spray Width: 1000 x 600mm
Voltage: 220V
Power: 800W
Pressure: 0.5MPa
Dimensions: 1700 x 1250 x 1680mm
Net Weight: 260kg
