Description

Glue Sprayer Features:

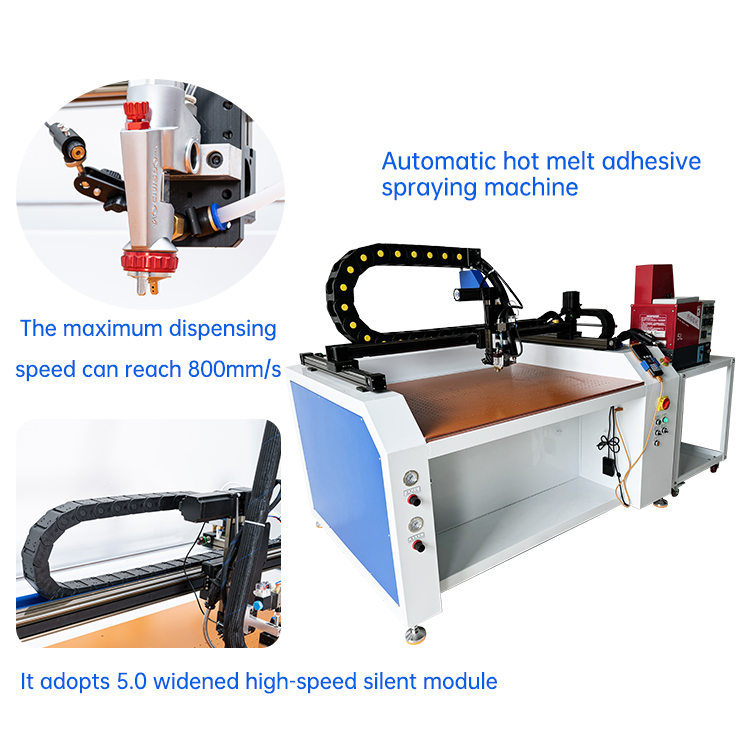

1. Fast Speed: The glue spraying speed can reach up to 800 mm/s. This machine utilizes a high-power closed-loop motor, achieving a maximum glue spraying speed of 800 mm/s per distance.

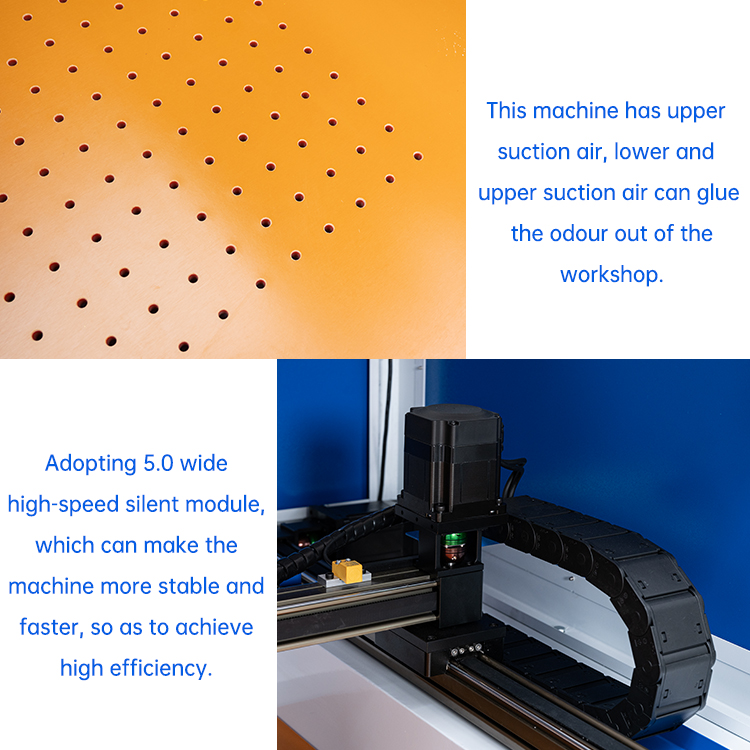

2. Module: Utilizes a 5.0mm wide, high-speed, silent module, ensuring smoother, faster operation and high efficiency.

3. Accepts Glues: Yellow glue, white glue, hot melt glue, spray glue, and other liquid glues and solvents.

4. All-Sheet Metal Frame: The frame is constructed of welded sheet metal, ensuring it remains stable even during long-distance shipping. No assembly is required; simply plug in and use.

5. Large Range: The glue spraying range is 1 meter long and 60 cm wide. Customized models are available for larger or smaller sizes.

6. Material Securement: This machine uses downward suction, which absorbs the material and prevents it from moving during operation.

7. Easy to operate. Programming can be done on-site using a touchscreen computer, or you can create a program on a computer using applications like CAD/CORELDRAW, convert it to PLT format, and then download it to the machine. It’s easy to learn and understand.

8. High speed. The bridge-type platform structure allows for simultaneous work and material unloading, resulting in glue spraying speeds 5-6 times faster than manual operation.

9. Up to four axes can be linked, allowing for forward and backward, left and right movement, as well as three-dimensional, inclined, and isolated surface glue application.

10. High precision and uniform glue application, eliminating glue push and stuck glue.

11. The glue barrel is completely sealed to prevent glue from drying out. This reduces waste and prevents the release of toxic gases that can pollute the work environment.

12. It is compatible with a wide range of glues, including white glue, all-purpose glue, PU glue, and hot melt glue.

13. Large working range, capable of spraying up to 1000mm x 600mm.

14. Environmentally friendly and energy-saving, the exhaust system filters out odors and mist from the glue during spraying.

Product Parameters:

Spray Width: 1000*600mm

Voltage: 220V

Power: 800W

Pressure: 0.5MPa

Machine Dimensions: 1700*1250*1400mm

Net Weight: 260KG

Applications:

Suitable for: luggage and bag factories, leather bag factories, gift and jewelry box factories, leather goods factories, electronic product leather case factories, jewelry factories, furniture factories, eyeglass case factories, automotive interior factories, and shoe factories.
