Description

Features of the glue spraying machine:

1. Easy to operate. Programming can be done on-site using a touchscreen computer or on a computer using applications like CAD/CORELDRAW. Programs can then be converted to PLT format and downloaded to the machine, making it easy to learn and understand.

2. High speed. The bridge-type platform structure allows for simultaneous operation and material unloading, resulting in glue spraying speeds 5-6 times faster than manual operation.

3. Up to four axes can be operated simultaneously, allowing for forward and backward, left and right movement, as well as three-dimensional, inclined, and single-sided glue application.

4. High precision and uniform glue application, eliminating glue push and glue dead spots.

5. The glue barrel is completely sealed, preventing glue from drying out. This reduces waste and prevents the release of toxic gases that could pollute the work environment.

6. Suitable for a wide range of glues, including white glue, all-purpose glue, PU glue, and hot melt glue.

7. Large working range, capable of spraying up to 1000mm x 600mm. 8. Environmentally friendly and energy-saving, the exhaust system filters out odors and mist from the glue during spraying.

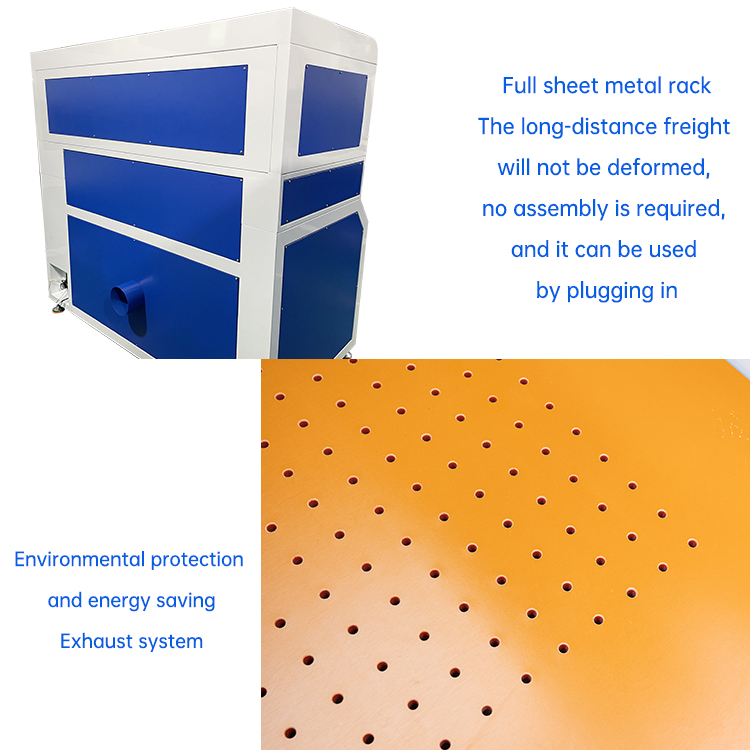

All-sheet metal frame: The frame is a welded sheet metal structure, which will not deform even during long-distance shipping. No assembly is required, just plug in and use.

Extremely large spray range: The spray range is 1.3 meters long and 100 cm wide. Larger or smaller models can also be customized.

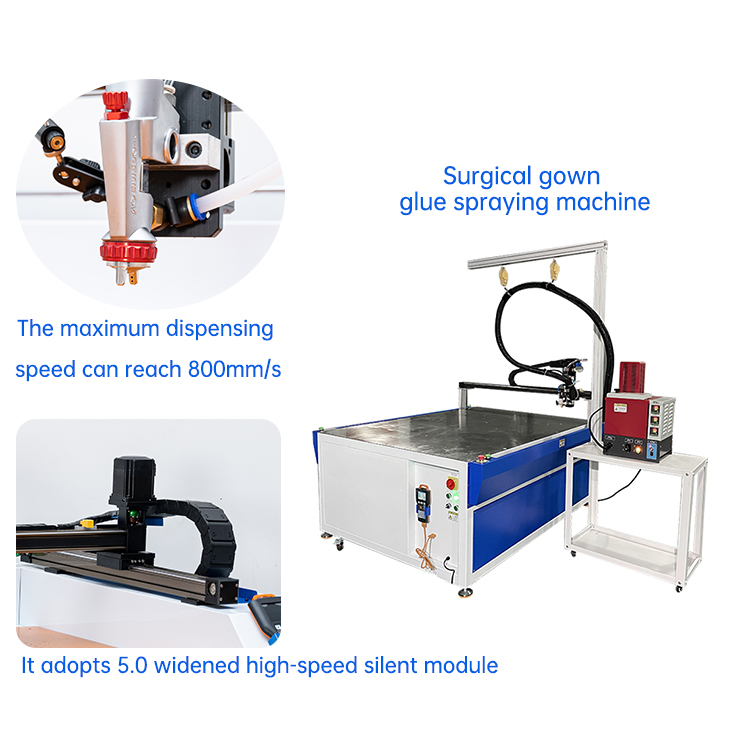

Fast speed: This machine uses a high-power closed-loop motor, achieving a maximum spray speed of 800 mm/s per distance.

Module: A 5.0-inch wide, high-speed, silent module is used, making the machine smoother and faster, thereby achieving high efficiency.

Material fixation: The machine uses downward suction, which absorbs the material and allows it to be fixed while working. The machine does not move during the process.

Used glue: yellow glue, white glue, hot melt glue, spray glue, and other liquid glues and solvents.

Product Parameters:

Spray Width: 1000*600mm

Voltage: 220V

Power: 800W

Pressure: 0.5MPa

Machine Dimensions: 1700*1250*1400mm

Net Weight: 260kg

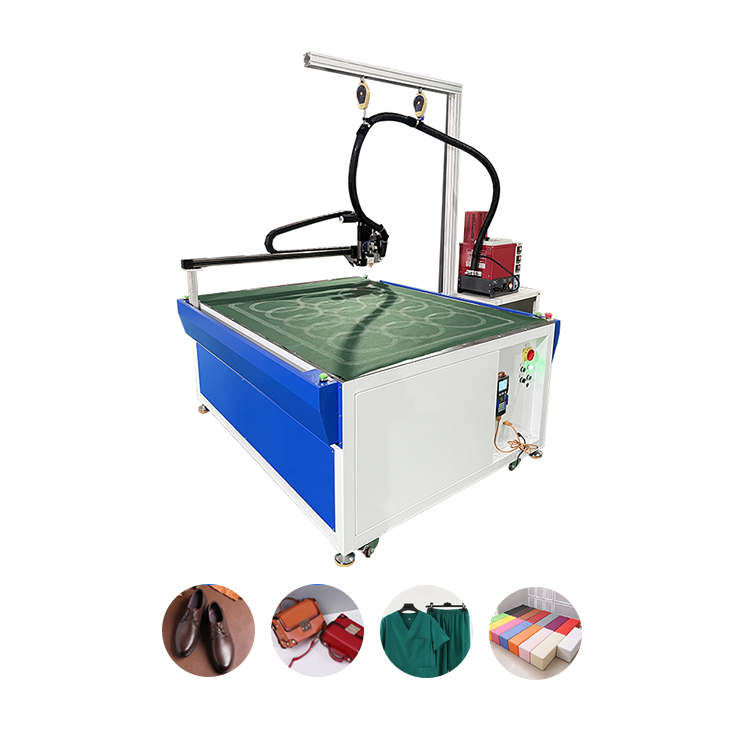

Applications:

Suitable for: surgical gowns, luggage and bag factories, gift and jewelry packaging factories, leather goods factories, electronic product leather case factories, jewelry factories, furniture factories, eyeglass case factories, automotive interior factories, and shoe factories.
