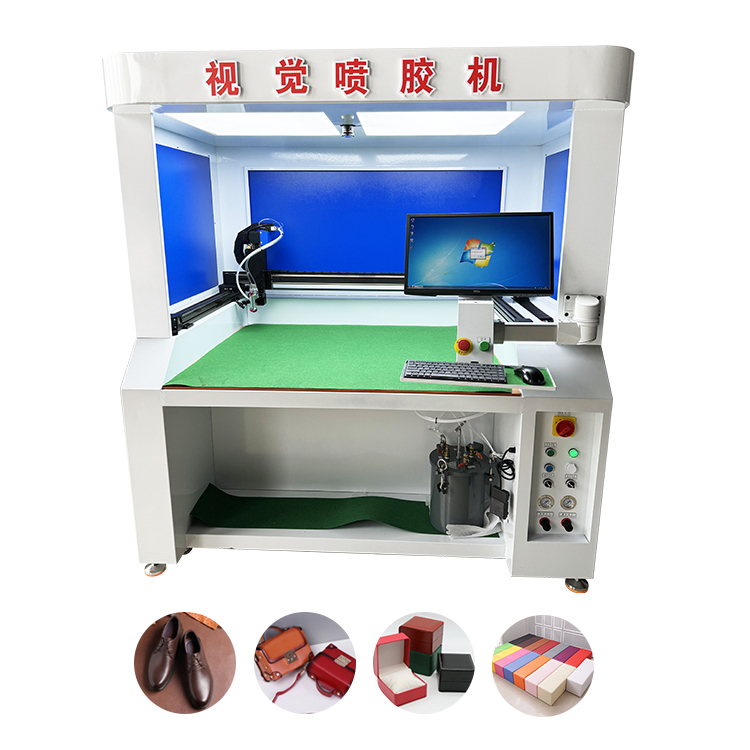

JL-1390GD Increase the fixed visual glue spraying machine

Description

Product Features:

1. Large Frame: The glue spraying range is 1.3 meters long and 90 cm wide.

2. All-Sheet Metal Frame: The frame is a welded sheet metal structure that will not deform during long-distance transportation. No assembly is required; just plug in and run.

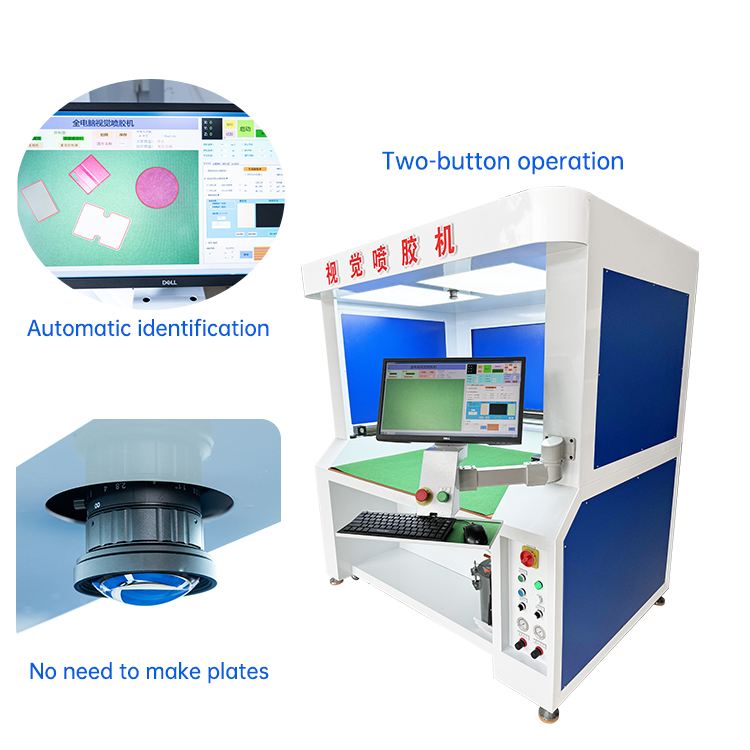

3. Automatic Identification: The machine uses a 25-megapixel camera that can capture and identify the material’s outline within 1 second and generate a glue spraying path.

4. No Pattern Required: No need to edit or create a pattern; simply place any shape or color onto the machine platform and the machine will automatically identify the product’s path. No need to save or import drawings.

5. Free Drop: Materials can be placed anywhere in the machine; there’s no need for a fixed location; the machine will automatically find them.

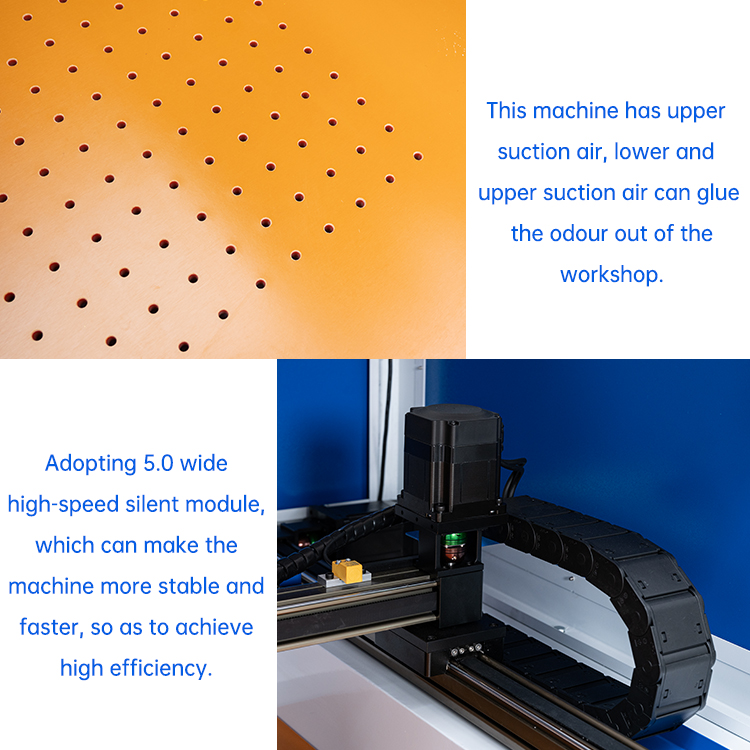

6. Automatic suction: This machine is equipped with three fans for suction, which absorbs the material and prevents it from moving during operation.

7. Module: A 5.0mm wide, high-speed, silent module is used, ensuring smoother and faster operation, resulting in high efficiency.

8. High Speed: This machine utilizes a 750W high-power full servo motor, achieving a maximum glue spraying speed of 1200 mm/s per distance.

9. Simple operation: Programming is possible on-site using a touchscreen computer or via a computer.

10. Programs can be created in applications such as CAD/CORELDRAW, converted to PLT format, and then downloaded to the machine, making it easy to learn and understand.

11. High speed: The bridge-type platform structure allows for simultaneous operation and material unloading, achieving glue spraying speeds 5-6 times faster than manual operation.

12. Up to four axes can be linked, enabling not only forward and backward, left and right movement, but also three-dimensional, inclined, and single-sided gluing.

13. High precision and uniform glue spraying surfaces, eliminating glue push and glue deadening.

14. The glue bucket is completely sealed to prevent glue from drying out. This reduces waste and prevents the release of toxic gases that could pollute the work environment.

15. It is compatible with a wide range of glues, including white glue, all-purpose glue, PU glue, and hot-melt glue.

16. It has a large working range, capable of spraying up to 1000mm x 600mm.

17. The environmentally friendly and energy-saving exhaust system filters out odors and mist from the glue during spraying.

Applicable to:

Shoe factories, luggage factories, leather bag factories, gift jewelry packaging box factories, leather goods factories, electronic product leather case factories, jewelry factories, furniture factories, glasses case factories, automobile interior parts factories and other industries.
