Description

Product Features:

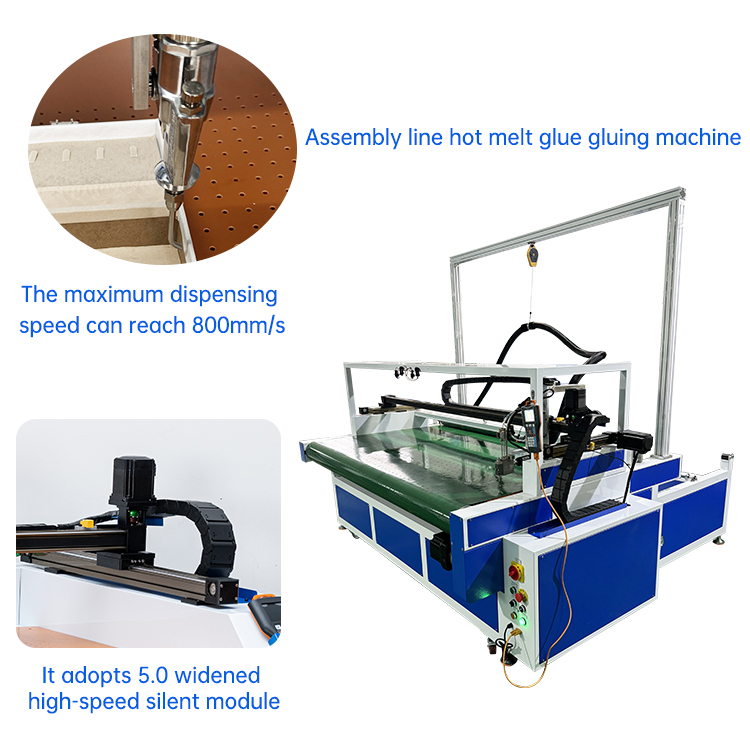

1. Fast Speed: This machine utilizes a high-power closed-loop motor, achieving a maximum glue spraying speed of 800 mm/s per distance.

2. Module: Utilizes a 5.0mm wide, high-speed, silent module, ensuring smoother operation and higher efficiency.

3. All-sheet metal frame: Resists deformation during long-distance shipping. No assembly required; simply plug in and use.

4. A 2.5-meter-long conveyor feeder and a rear unwinder are suitable for whole-roll glue spraying.

5. Adopts hot-melt glue, and can also be used with common resin glue.

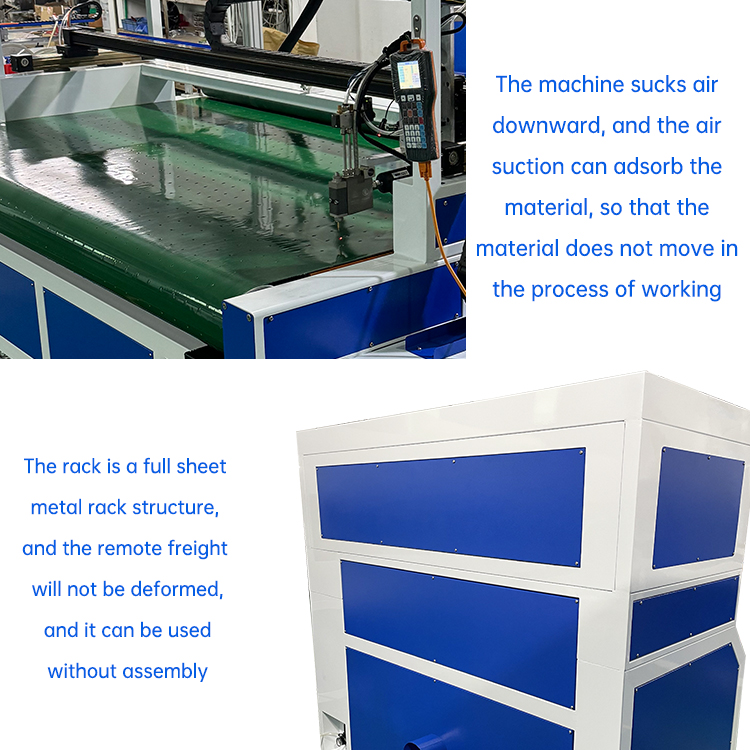

6. Material Fixing: This machine features downward suction, which helps hold the material in place during operation.

7. Accepts various types of glues, including yellow glue, white glue, hot-melt glue, and spray glue.

8. Easy to operate: Program on-site using a touchscreen computer or program on a computer using applications like CAD/CORELDRAW, convert the program to PLT format, and then download it to the machine.

9. High speed. The bridge-type platform structure allows for simultaneous operation and material unloading, resulting in glue spraying speeds 5-6 times faster than manual operation.

10. Up to four axes can be linked, enabling not only forward and backward, left and right movement, but also three-dimensional, inclined, and single-sided gluing.

11. High precision and uniform glue application, eliminating glue push and glue dead spots.

12. The glue barrel is completely sealed, preventing glue from drying out. This reduces waste and prevents the release of toxic gases that could pollute the work environment.

13. Large working range, capable of spraying up to 1000mm x 600mm.

14. Environmentally friendly and energy-saving, the exhaust system filters out odors and mist from the glue during spraying.

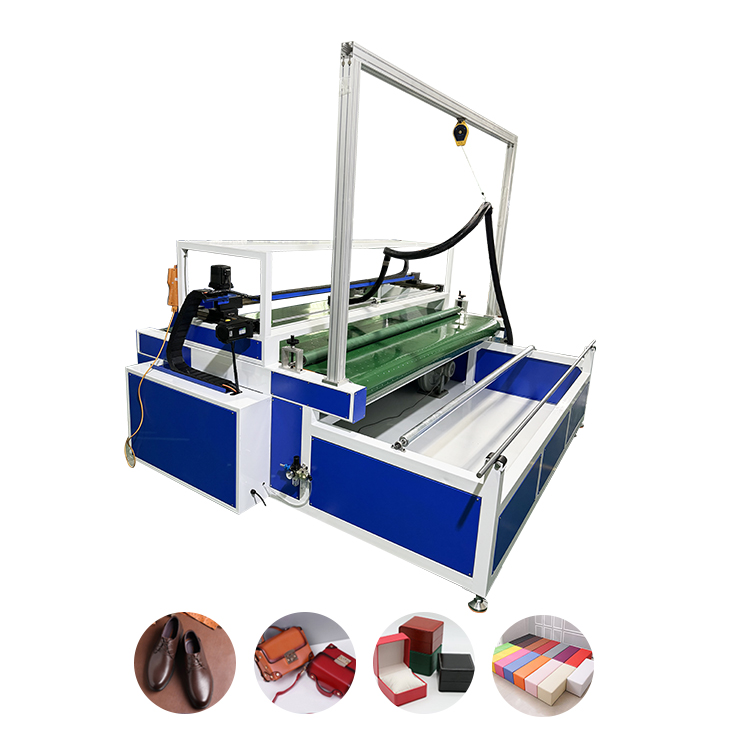

This fully automatic dual-gun glue sprayer is suitable for luggage and bag factories, gift and jewelry packaging factories, leather goods factories, electronic product leather case factories, jewelry factories, furniture factories, eyeglass case factories, automotive interior factories, shoe factories, and other industries.

Product Specifications:
Spray Width: 1000 x 600mm
Voltage: 220V
Power: 800W
Pressure: 0.5MPa
Dimensions: 1700 x 1250 x 1400mm
Net Weight: 200kg
