Description

Product Features:
1. Fast Speed: This machine utilizes a high-power closed-loop motor, achieving a maximum glue spraying speed of 800 mm/s per distance.

2. Module: Utilizes a 5.0mm wide, high-speed, silent module, ensuring smoother operation and higher efficiency.

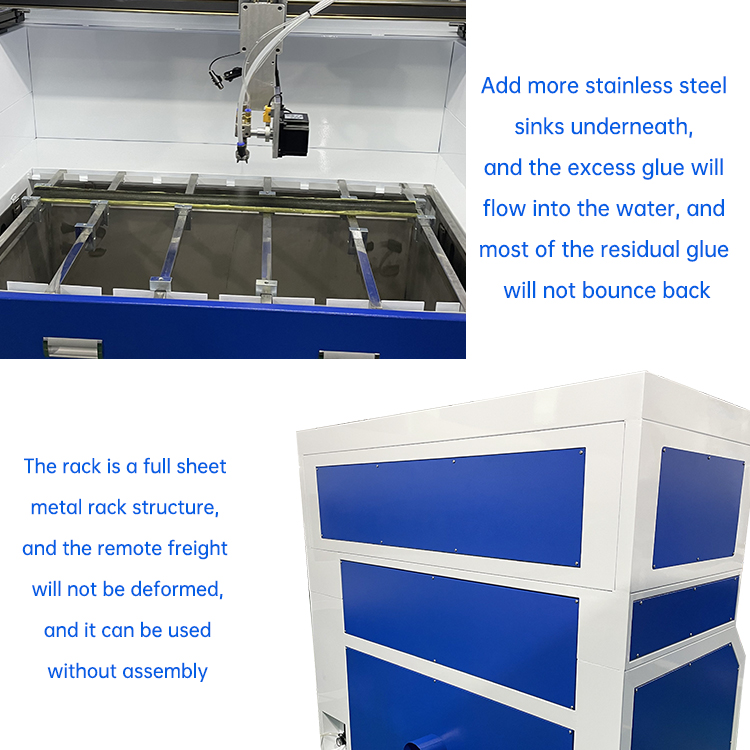

3. All-sheet metal frame: Resists deformation during long-distance shipping. No assembly required; simply plug in and use.

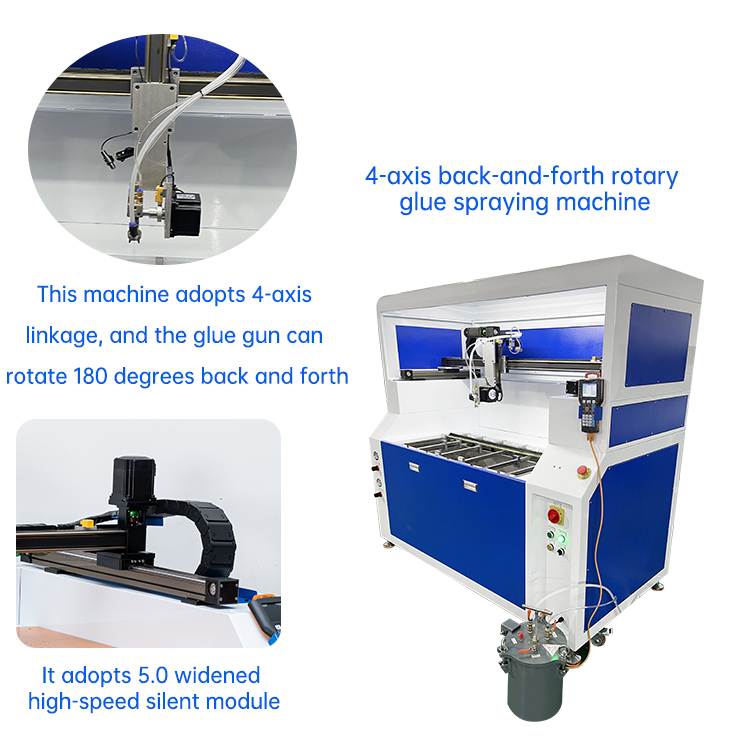

4. This machine utilizes a four-axis linkage, allowing the glue gun to rotate 180 degrees forward and backward.

5. Large Range: The glue spraying range is 1 meter long and 60 cm wide. Customized models are available for larger or smaller sizes.

6. Material Securement: This machine features downward suction, which absorbs the material and prevents it from moving during operation.

7. Environmentally Friendly: Equipped with double transparent doors, it is even more environmentally friendly and prevents odors from escaping.

8. Features: This machine utilizes a four-axis linkage, allowing the glue gun to rotate 180 degrees forward and backward. This machine features a frame height of 40 cm on both sides, compared to 15 cm for conventional machines, allowing it to spray three-dimensional products.

9. Accepts various types of glues, including yellow glue, white glue, hot melt glue, and spray glue.

10. Easy to operate: Programming can be done on-site using a touchscreen computer, or you can program on a computer using applications like CAD/CoreLDRAW, convert the program to PLT format, and then download it to the machine. It’s easy to learn and understand.

11. High speed: The bridge-type platform structure allows for simultaneous operation and material unloading, resulting in glue spraying speeds 5-6 times faster than manual operation.

12. Up to four axes can be linked, allowing for forward, backward, and left-right movement, as well as three-dimensional, inclined, and single-sided gluing.

13. High precision and uniform glue application, eliminating glue push and glue dead spots.

14. The glue barrel is completely sealed to prevent glue from drying out. This reduces waste and prevents the release of toxic gases that can pollute the work environment.

15. Large working range, capable of spraying up to 1000mm x 600mm.
16. Environmentally friendly and energy-saving, the exhaust system filters out odors and mist from the glue during spraying.

This fully automatic dual-gun glue sprayer is suitable for luggage and bag factories, gift and jewelry packaging factories, leather goods factories, electronic product leather case factories, jewelry factories, furniture factories, eyeglass case factories, automotive interior factories, shoe factories, and other industries.

Product Parameters:
Spray Width: 1000 x 600mm
Voltage: 220V
Power: 800W
Pressure: 0.5MPa
Machine Dimensions: 1700 x 1250 x 1400mm
Net Weight: 200KG
