Description

Product Features:
1. Automatic gluing: The machine automatically dispenses glue while folding. The glue amount is automatically adjusted based on the folding speed, and can also be manually adjusted.
2. High speed: Automatic gluing and folding takes 3 seconds per product, with a maximum gluing speed of 700 mm/second.

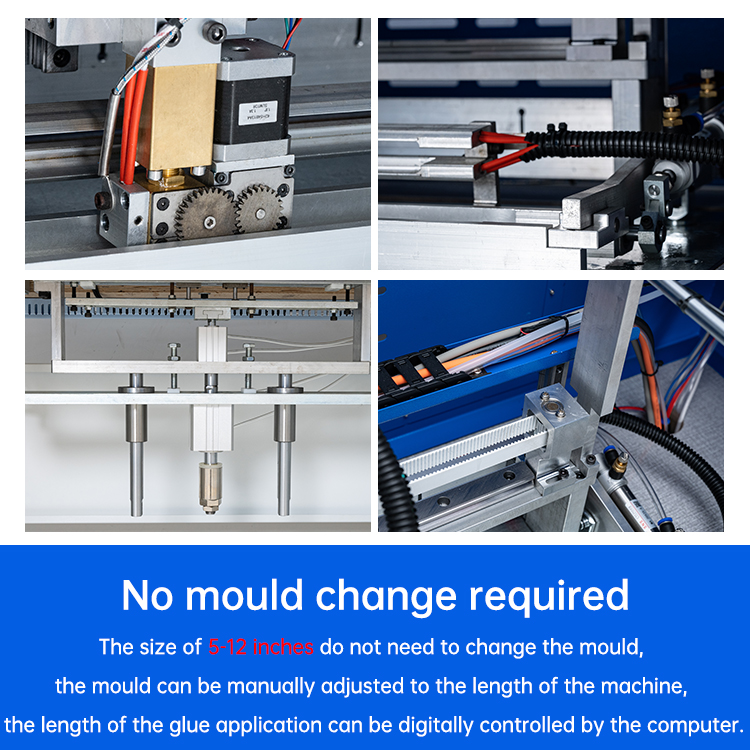

3. No mold changes required: Sizes from 5-12 inches do not require mold changes. The mold length can be manually adjusted, and the gluing length can be digitally controlled by a computer.
4. Display: This machine features a fully computerized LCD touchscreen display for easy adjustment of dimensions and various parameters.

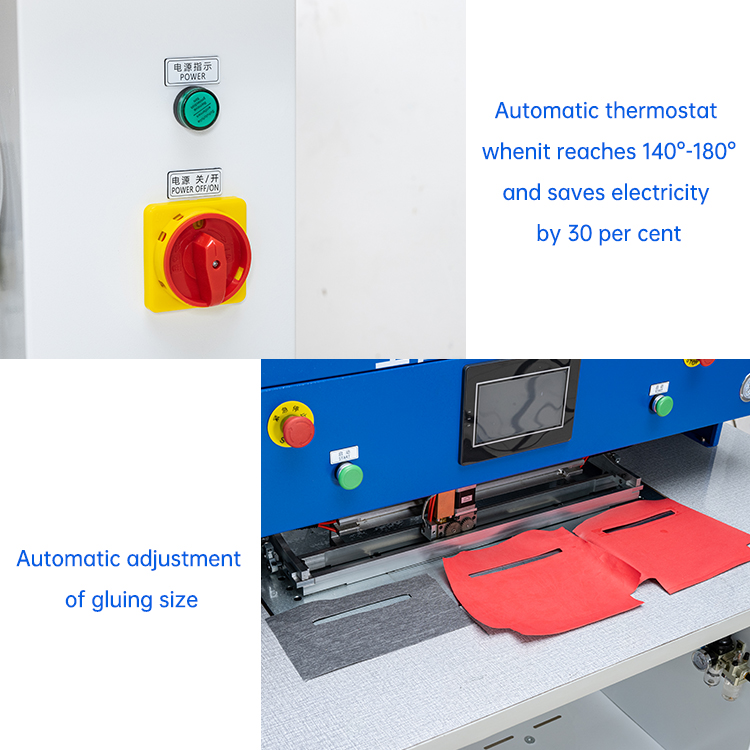

5. Automatic constant temperature: The machine automatically heats up upon startup and automatically maintains a constant temperature (140°-180°C), saving 30% of electricity.
6. Integrated gluing and folding reduce manual material handling.
7. Automatic gluing ensures uniform glue application and secure bonding.
8. High folding speed: The machine produces smooth, standardized folds without chipping, cracking, or cracked corners, resulting in a more aesthetically pleasing product. 9. Can fold zipper windows from 5 to 12 inches.
10. One set of molds is sufficient for various materials, including thin and thick, soft and hard materials.
11. Can fold zipper windows and bag edges from 5 to 12 inches without changing molds.
12. Automatic gluing ensures even glue application and secure bonding.

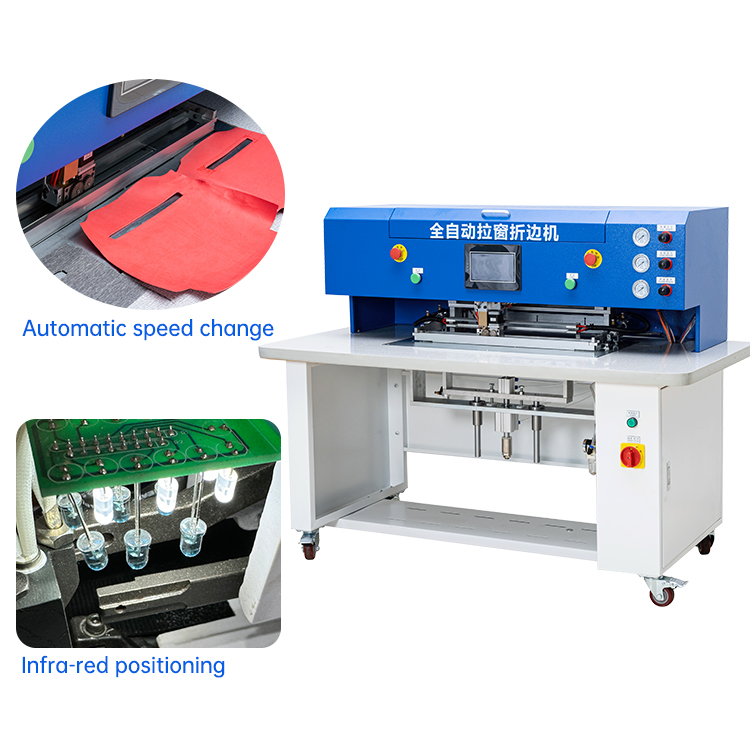

13. Equipped with infrared positioning for fast and accurate positioning.
14. Microcomputer control for stable performance.

The product is suitable for: handbag factory, luggage factory, leather factory and other industries

Product Parameters:
Folding Range: 5-12 inches
Power Supply: 220V
Motor Power: 1kW
Air Source Starting Pressure: 0.5-0.7MPa
Dimensions: 1500*750*1200mm
Net Weight: 160kg
